一、DataX

# 实验机器10.10.14.210

# 官网
https://github.com/alibaba/DataX

# 下载最新稳定版本

# 因网络原因不建议在Linux中使用下面的命令下载最好是在有魔法的Winodws机器上下载完成后上传到Linux主机中
cd /usr/local
wget https://github.com/alibaba/DataX/archive/refs/tags/datax_v202309.tar.gz

# 解压
tar -xvzf DataX-datax_v202309.tar.gz
# 阅后即焚
rm -rf DataX-datax_v202309.tar.gz
# 修改目录
mv DataX-datax_v202309 datax

环境要求

# 我使用的是10.10.14.210 RockyLinux 9.5,满足要求
Linux

# 我使用的是JDK 17应该可以
JDK(1.8以上推荐1.8)

# RockyLinx 9.5自带了Python3
Python(2或3都可以)

# 这个应该不用我不想在Linux中编译DataX
Apache Maven 3.x (Compile DataX)

检查运行环境

[root@RockyLinux datax]# java --version
openjdk 17.0.15 2025-04-15 LTS
OpenJDK Runtime Environment (Red_Hat-17.0.15.0.6-1) (build 17.0.15+6-LTS)
OpenJDK 64-Bit Server VM (Red_Hat-17.0.15.0.6-1) (build 17.0.15+6-LTS, mixed mode, sharing)

[root@RockyLinux datax]# python --version
Python 3.9.18

替换Python3的脚本

因为默认使用的是python2脚本如果需要使用python3脚本需要替换一下

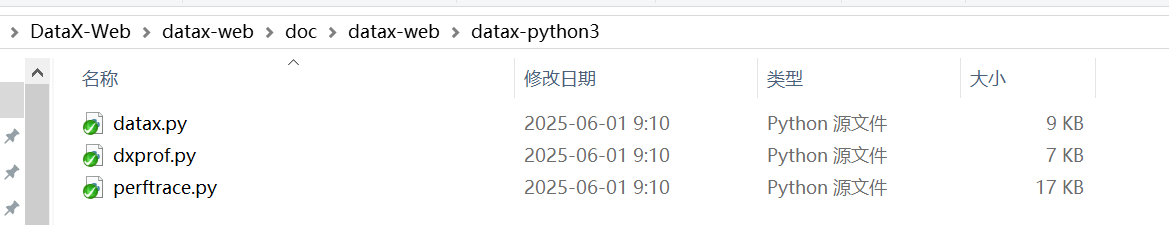

C:\Users\Administrator\Desktop\DataX-Web\datax-web\doc\datax-web\datax-python3 目录下的三个文件

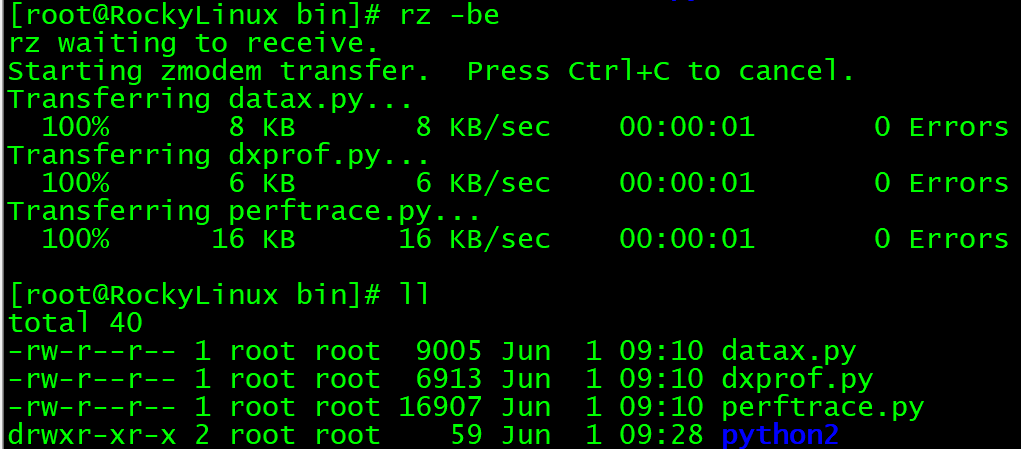

上传到Linux的/usr/local/datax/core/src/main/bin目录下,替换原来的文件即可。

二、DataX Web后端代码

https://github.com/WeiYe-Jing/datax-web

Git下载

https://github.com/WeiYe-Jing/datax-web.git

安装数据库

# 创建数据库
执行bin/db下面的datax_web.sql文件(注意老版本更新语句有指定库名)

开发环境配置

https://github.com/WeiYe-Jing/datax-web/blob/master/userGuid.md

注意因为项目依赖的SpringBoot版本较老阿里云镜像中已经找不到这个版本还用阿里云镜像加速下载会出现找不到JAR的问题一定要保证 Maven的设置中去掉阿里云的镜像服务!

下载Hadoop插件

这里只完成了Windows开发环境的配置过程Linux部署Hadoop的方法在实际部署时需要再测试记录。

https://github.com/steveloughran/winutils

# 配置Hadoop目录
D:\dsWork\dsProject\dsData\hadoop

# 添加系统变量
HADOOP_HOME = D:\dsWork\dsProject\dsData\hadoop
编辑Path变量 → 新增条目:%HADOOP_HOME%\bin

# 验证
winutils version  # 应显示版本信息
hadoop fs -ls /   # 测试HDFS命令是否报错

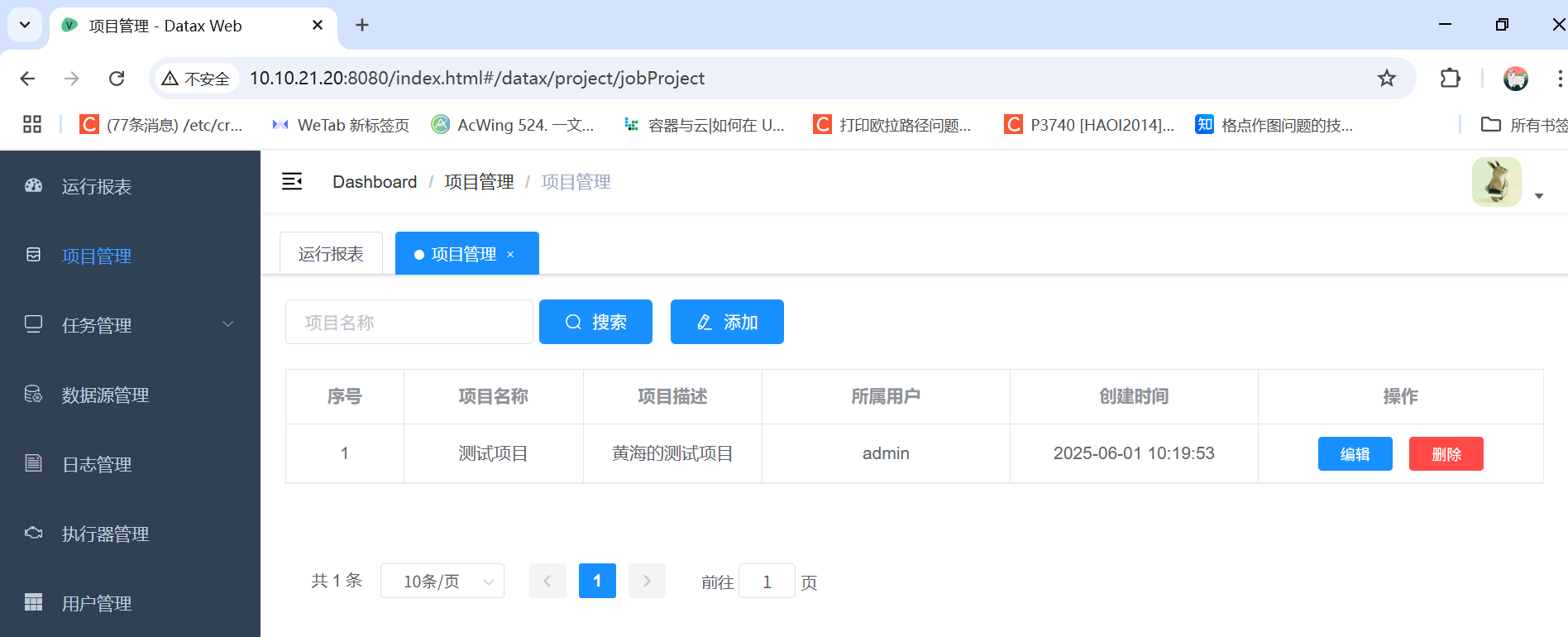

访问地址:

http://10.10.21.20:8080/index.html
#默认管理员用户名admin 密码123456

三、DataX前端代码

https://github.com/WeiYe-Jing/datax-web-ui
