+### 一、$DataEase$最新版本下载
+
+```apl
+https://community.fit2cloud.com/#/products/dataease/downloads
+```
+
+
+
+**在线安装**
+
+```shell
+curl -sSL https://dataease.oss-cn-hangzhou.aliyuncs.com/quick_start_v2.sh | sh
+```
+
+
+
+**在线升级**
+
+```shell
+dectl upgrade
+```
+
+
+
+### 二、将$DataEase$发布$80$端口
+
+#### 拉取
+
+```shell
+docker pull swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/openresty/openresty:1.25.3.1-5-alpine-fat
+```
+
+#### 打标
+
+```shell
+docker tag  swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/openresty/openresty:1.25.3.1-5-alpine-fat  docker.io/openresty/openresty:1.25.3.1-5-alpine-fat
+```
+
+
+
+#### 编辑 $nginx.conf$
+
+```shell
+vi /root/nginx.conf
+```
+
+
+
+```apl
+worker_processes  1;
+
+events {
+    worker_connections  1024;
+}
+
+http {
+    include       mime.types;
+    default_type  application/octet-stream;
+
+    sendfile        on;
+    keepalive_timeout  65;
+
+    # DataEase 所在机器的IP
+    upstream dataease {
+        server 10.10.14.203:8100;
+    }
+    # 配置日志位置
+    access_log /var/log/nginx/access.log;
+	error_log /var/log/nginx/error.log;
+
+    server {
+        # 监听端口
+        listen   80;
+        # 监听域名（修改为你自己的域名，且域名与nginx所在服务器的IP绑定）
+        #server_name  dataease.test.com;
+
+        location / {
+            proxy_pass http://dataease;
+            proxy_set_header X-Real-IP $remote_addr;
+            proxy_set_header Host $http_host;
+            proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
+        }
+    }
+}
+```
+
+#### 运行
+
+```shell
+mkdir /root/nginx_logs
+docker run  --name openresty -d -v /root/nginx.conf:/usr/local/openresty/nginx/conf/nginx.conf -v /root/nginx_logs:/var/log/nginx -p 80:80 openresty/openresty:1.25.3.1-5-alpine-fat
+```
+
+```
+http://10.10.14.203/
+```
+
+
+
+### 三、配置外网访问
+
+```shell
+[root@dataease frp]# cat frpc.ini
+[common]
+server_addr = www.wmarkj.com
+server_port = 7000
+
+[dsideal_DataEaseV2]
+type=tcp
+local_ip=10.10.14.203
+local_port=80
+remote_port=27080
+```
+
+
+
+### 四、访问方式
+
+```xml
+系统登录信息如下:
+内网访问地址: http://10.10.14.203
+外网访问地址：http://www.wmarkj.com:27080
+用户名: admin
+初始密码: DataEase@123456
+```
+

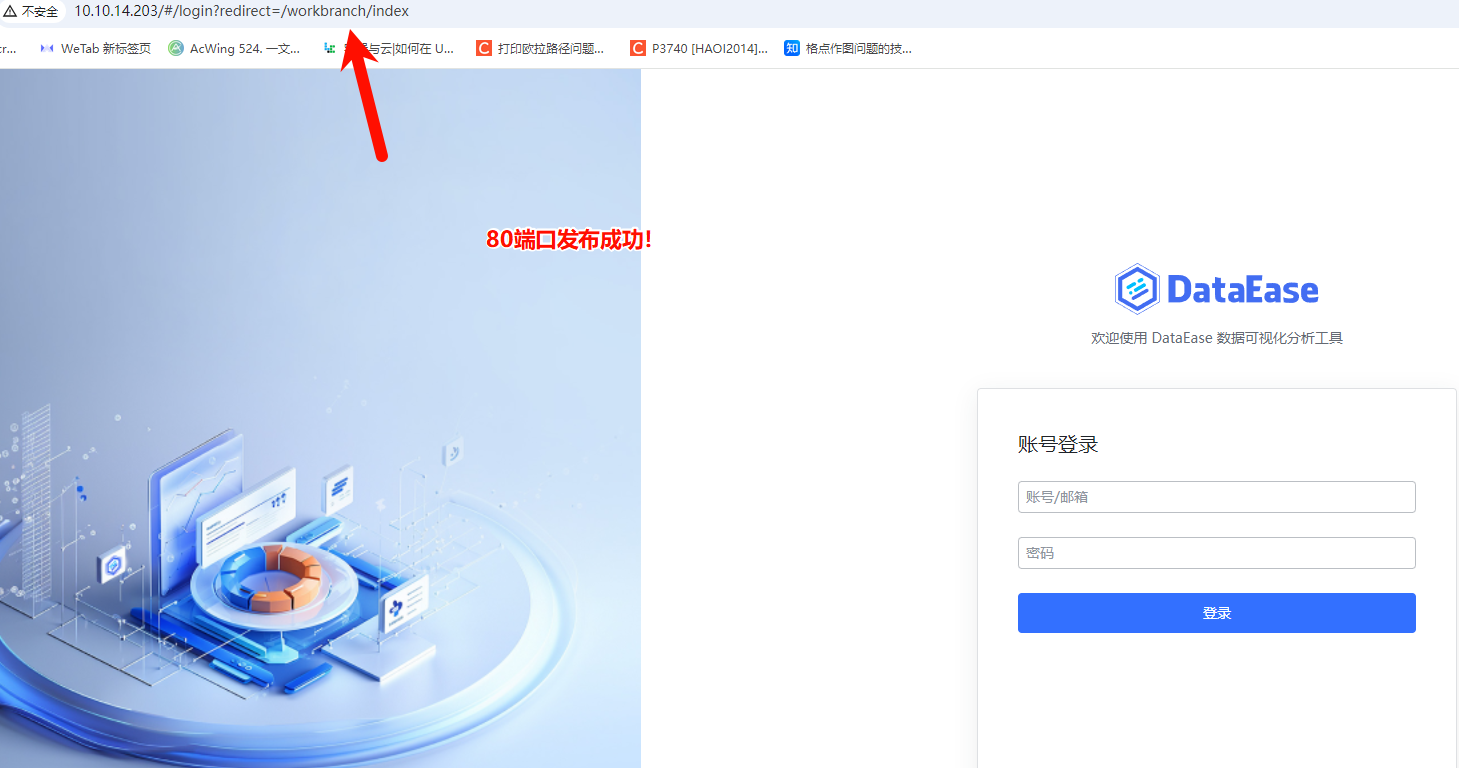

+![](https://dsideal.obs.cn-north-1.myhuaweicloud.com/HuangHai/BlogImages/202409131316541.png)
+

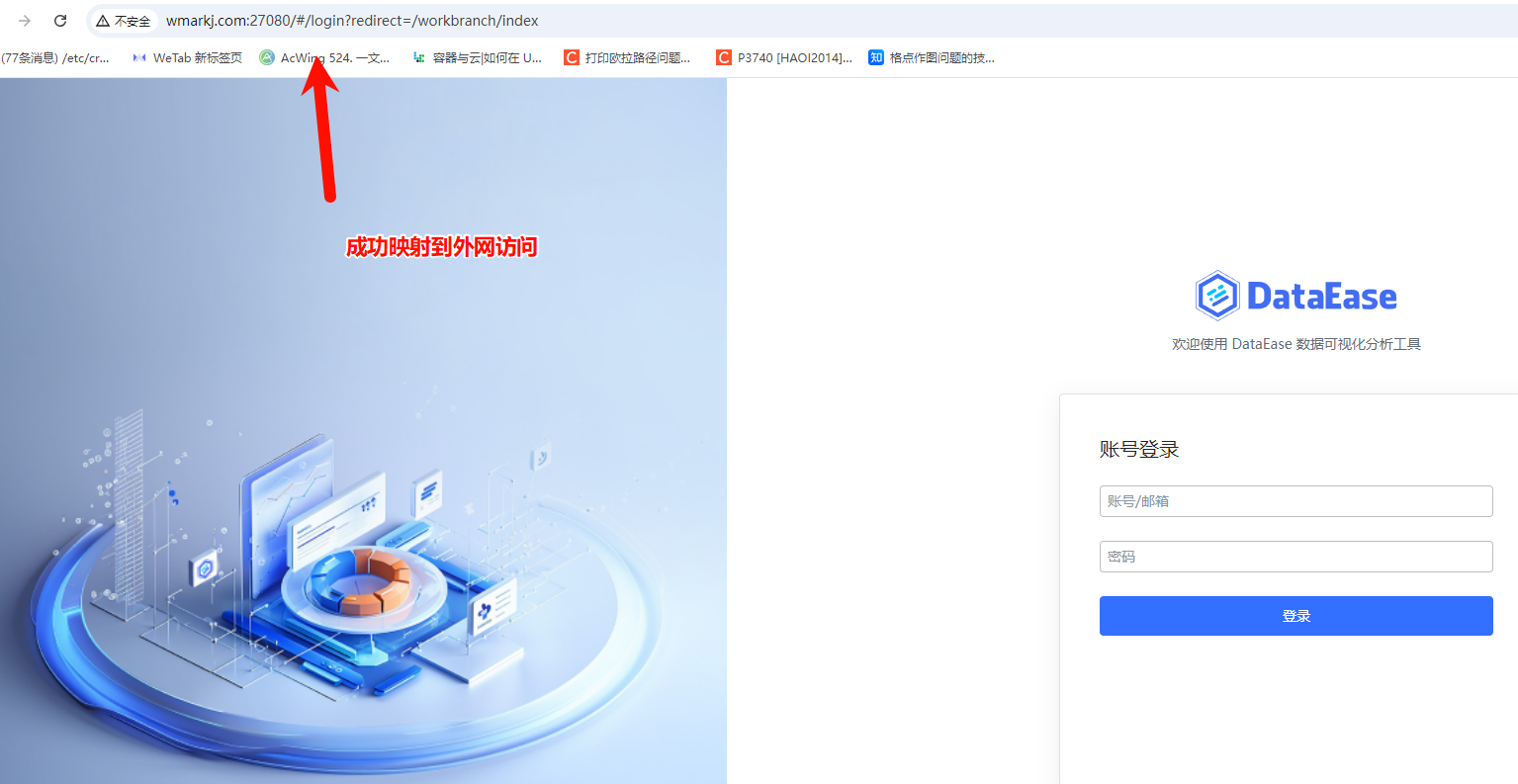

+![](https://dsideal.obs.cn-north-1.myhuaweicloud.com/HuangHai/BlogImages/202409131323392.png)
