+## 搭建$k8s$集群
+
+**1.1 准备环境**
+
+```apl
+# Linux版本
+Rocky Linux 9.4 Mini
+
+# 更新系统
+dnf clean all
+dnf update
+
+# K8S的三台服务器
+10.10.14.200 k8s-master
+10.10.14.201 k8s-node1
+10.10.14.202 k8s-node2
+
+# Docker镜像仓库
+K8S-IMAGES 10.10.14.203
+```
+
+
+
+**2.2 系统初始化**
+
+设置系统时区为上海
+
+```shell
+timedatectl set-timezone Asia/Shanghai
+clock -w
+
+# 查看时区
+ ls -l /etc/localtime
+```
+
+关闭防火墙：
+
+```shell
+systemctl stop firewalld
+systemctl disable firewalld
+sed -i 's/enforcing/disabled/' /etc/selinux/config
+setenforce 0
+```
+
+关闭$swap$分区：
+
+```shell
+sed -ri 's/.*swap.*/#&/' /etc/fstab
+swapoff -a
+```
+
+在$master$上执行
+
+```shell
+hostnamectl set-hostname k8s-master
+```
+
+在$node1$上执行
+
+```shell
+hostnamectl set-hostname  k8s-node1
+```
+
+
+
+在$node2$上执行
+
+```shell
+hostnamectl set-hostname k8s-node2
+```
+
+
+
+在每个节点添加$hosts$：
+
+```shell
+cat >> /etc/hosts << EOF
+10.10.14.200 k8s-master
+10.10.14.201 k8s-node1
+10.10.14.202 k8s-node2
+EOF
+```
+
+
+
+将桥接的$IPv4$流量传递到$iptables$的链：
+
+在每个节点添加如下的命令：
+
+```shell
+cat > /etc/sysctl.d/k8s.conf << EOF
+net.bridge.bridge-nf-call-ip6tables = 1
+net.bridge.bridge-nf-call-iptables = 1
+net.ipv4.ip_forward = 1
+vm.swappiness = 0
+EOF
+```
+
+
+
+在每个节点加载$br\_netfilter$模块
+
+```shell
+modprobe br_netfilter
+
+# 生效
+sysctl --system
+```
+
+
+
+查看是否加载
+
+```
+lsmod | grep br_netfilter
+```
+
+
+
+
+在每个节点添加时间同步：
+
+安装$ntpdate$时间同步插件
+
+```shell
+dnf install chrony -y
+systemctl enable --now chronyd
+```
+
+编辑内容
+
+```
+vi /etc/chrony.conf
+```
+
+```
+server 0.pool.ntp.org iburst
+server 1.pool.ntp.org iburst
+server 2.pool.ntp.org iburst
+server 3.pool.ntp.org iburst
+```
+
+重新启动
+
+```
+systemctl restart chronyd
+```
+
+手工同步
+
+```
+chronyc makestep
+```
+
+
+
+在每个节点安装$ipset$和$ipvsadm$：
+
+安装
+
+```shell
+yum -y install ipset ipvsadm
+```
+
+
+
+配置
+
+```
+mkdir -p /etc/sysconfig/modules/
+cat > /etc/sysconfig/modules/ipvs.modules <<EOF
+#!/bin/bash
+modprobe -- ip_vs
+modprobe -- ip_vs_rr
+modprobe -- ip_vs_wrr
+modprobe -- ip_vs_sh
+modprobe -- nf_conntrack
+EOF
+```
+
+
+
+授权、运行、检查是否加载：
+
+```
+chmod 755 /etc/sysconfig/modules/ipvs.modules && bash /etc/sysconfig/modules/ipvs.modules && lsmod | grep -e ip_vs -e nf_conntrack
+```
+
+
+
+**所有节点安装$Docker/kubeadm/kubelet/kubectl$**
+
+$k8s$默认CRI（容器运行时）为Docker，因此需要先安装Docker！
+
+所有节点安装$Docker$：
+
+获取镜像源
+
+```shell
+yum install -y yum-utils
+yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo
+```
+
+安装
+
+```
+# 找出有哪些可用的Docker版本
+yum list docker-ce --showduplicates | sort -r
+yum list docker-ce-cli --showduplicates | sort -r
+yum list containerd.io --showduplicates | sort -r
+```
+
+
+
+```
+docker-ce.x86_64               3:27.2.1-1.el9                  docker-ce-stable
+docker-ce.x86_64               3:27.2.1-1.el9                  @docker-ce-stable
+...
+docker-ce-cli.x86_64             1:27.2.1-1.el9                docker-ce-stable
+docker-ce-cli.x86_64             1:27.2.1-1.el9                @docker-ce-stable
+...
+containerd.io.x86_64              1.7.21-3.1.el9               docker-ce-stable
+containerd.io.x86_64              1.7.21-3.1.el9               @docker-ce-stable
+```
+
+
+
+```shell
+yum install -y docker-ce-27.2.1-1.el9 docker-ce-cli-27.2.1-1.el9   containerd.io-1.7.21-3.1.el9
+```
+
+设置开机自启动并启动
+
+```shell
+systemctl enable docker && systemctl start docker
+```
+
+配置加速
+
+```
+#创建文件夹
+mkdir -p /etc/docker
+rm -rf /etc/docker/daemon.json
+tee /etc/docker/daemon.json <<-'EOF'
+{
+  "registry-mirrors": ["https://82m9ar63.mirror.aliyuncs.com"],
+  "exec-opts": ["native.cgroupdriver=systemd"],
+  "log-driver": "json-file",
+  "log-opts": {
+    "max-size": "100m"
+  },
+  "storage-driver": "overlay2"
+}
+EOF
+systemctl daemon-reload
+systemctl restart docker
+```
+
+
+
+## **三、安装$kubeadm$**
+
+本章节操作在k8s集群所有机器（即master、所有node）都需要执行成功
+
+```shell
+# 配置k8s 下载的地址
+rm -rf /etc/yum.repos.d/kubernetes.repo
+cat <<EOF | sudo tee /etc/yum.repos.d/kubernetes.repo
+[kubernetes]
+name=Kubernetes
+baseurl=https://pkgs.k8s.io/core:/stable:/v1.29/rpm/
+enabled=1
+gpgcheck=1
+gpgkey=https://pkgs.k8s.io/core:/stable:/v1.29/rpm/repodata/repomd.xml.key
+# exclude=kubelet kubeadm kubectl cri-tools kubernetes-cni
+EOF
+
+# 安装3大件
+yum install -y kubelet kubeadm kubectl
+
+# 启动kubelet
+systemctl enable --now kubelet
+```
+
+**查看$kubeadm$、$kubelet$和$kubectl$ 是否安装成功**
+
+```
+kubeadm version
+kubelet --version
+kubectl version --client
+```
+
+
+
+**部署$kubetnets$**
+
+> 该操作只需要在master节点机器上执行
+
+```
+#原命令
+kubeadm init --apiserver-advertise-address=master的ip --image-repository registry.aliyuncs.com/google_containers --service-cidr=10.96.0.0/12 --pod-network-cidr=10.244.0.0/16
+
+#根据机器实际修改后的命令
+kubeadm init --apiserver-advertise-address=10.10.14.200 --image-repository registry.aliyuncs.com/google_containers --service-cidr=10.96.0.0/12 --pod-network-cidr=10.244.0.0/16
+```
+
+
+
+```
+[addons] Applied essential addon: CoreDNS
+[addons] Applied essential addon: kube-proxy
+
+Your Kubernetes control-plane has initialized successfully!
+
+To start using your cluster, you need to run the following as a regular user:
+
+  mkdir -p $HOME/.kube
+  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
+  sudo chown $(id -u):$(id -g) $HOME/.kube/config
+
+Alternatively, if you are the root user, you can run:
+
+  export KUBECONFIG=/etc/kubernetes/admin.conf
+
+You should now deploy a pod network to the cluster.
+Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
+  https://kubernetes.io/docs/concepts/cluster-administration/addons/
+
+Then you can join any number of worker nodes by running the following on each as root:
+
+kubeadm join 10.10.14.200:6443 --token ivocyb.4f2p3qu1nc5jptwf \
+    --discovery-token-ca-cert-hash sha256:e088f075df466e689b8db3ace62a7650f27a11b6f7b36ee61d1ebbbd8a720c16
+```
+
+**再根据日志提示命令结果在对应机器上执行**
+
+Master机器
+
+```shell
+mkdir -p $HOME/.kube
+cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
+chown $(id -u):$(id -g) $HOME/.kube/config
+```
+
+Node机器
+
+```

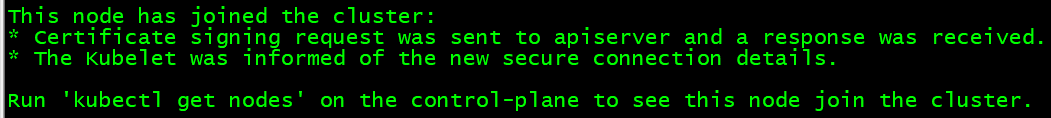

+#将两台node加入到集群中，分别在node1根node2执行刚刚 kubeadm init成功后下面打印的命令
+#注：日志里复制的“\”换行符要记得去掉
+kubeadm join 10.10.14.200:6443 --token ivocyb.4f2p3qu1nc5jptwf \
+    --discovery-token-ca-cert-hash sha256:e088f075df466e689b8db3ace62a7650f27a11b6f7b36ee61d1ebbbd8a720c16
+```
+
+
+
+![](https://dsideal.obs.cn-north-1.myhuaweicloud.com/HuangHai/BlogImages/202409101137042.png)
+
+**Node机器都执行完成后，在master节点机器执行该命令**
+
+三台都下载yml文件
+
+```shell
+wget https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml
+```
+
+三台都安装flannel的pod
+
+```shell
+kubectl apply -f kube-flannel.yml
+```
+
+```shell

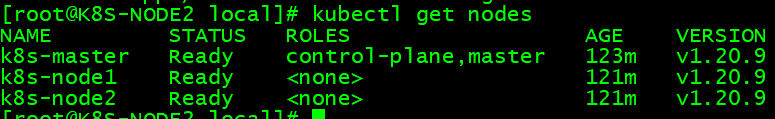

+kubectl get nodes
+```
+
+![](https://dsideal.obs.cn-north-1.myhuaweicloud.com/HuangHai/BlogImages/202409101340481.png)
+
+```shell

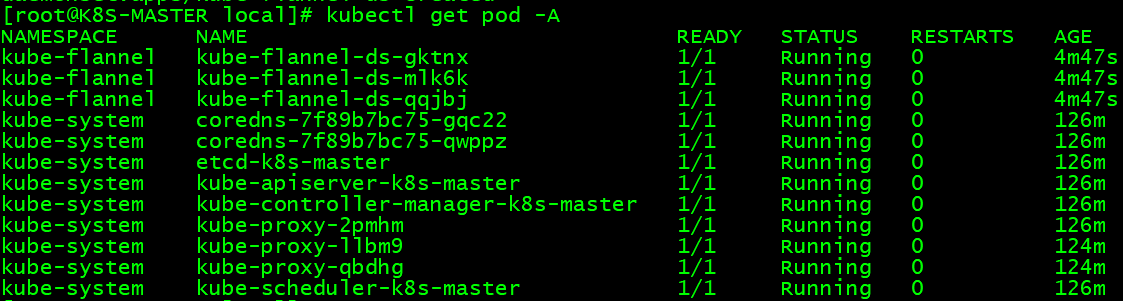

+kubectl get pod -A
+```
+
+![](https://dsideal.obs.cn-north-1.myhuaweicloud.com/HuangHai/BlogImages/202409101341823.png)
+
+#### 部署 $k8s$可视化界面$dashboard$
+
+```
+#命令执行【被墙了，需要科学上网后下载】
+wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.3.1/aio/deploy/recommended.yaml
+
+rz -be 选择：recommended.yaml
+
+kubectl apply -f recommended.yaml
+
+kubectl apply -f dashboard.yaml
+

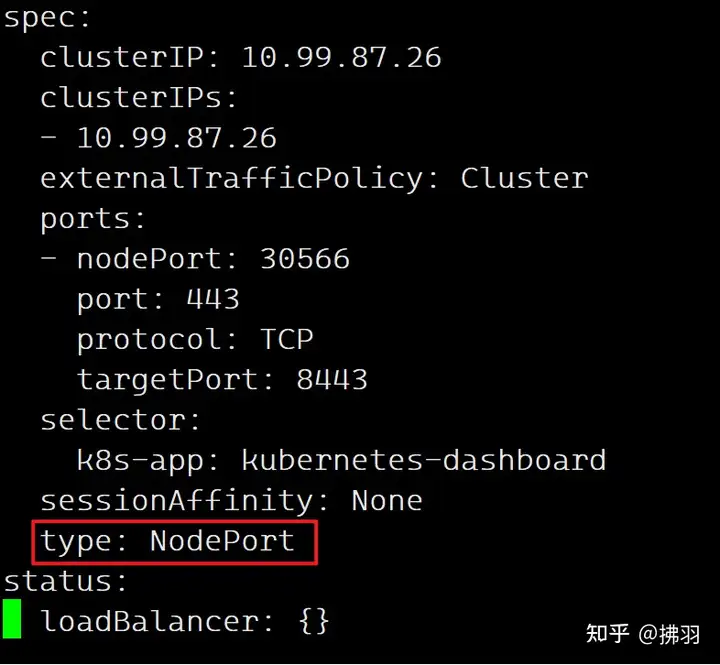

+# 将 type: ClusterIP 改为 type: NodePort
+kubectl edit svc kubernetes-dashboard -n kubernetes-dashboard
+```
+
+![](https://dsideal.obs.cn-north-1.myhuaweicloud.com/HuangHai/BlogImages/202409101348621.png)
+
+```
+# 查询端口
+kubectl get svc -A |grep kubernetes-dashboard
+
+```
+
+![](https://dsideal.obs.cn-north-1.myhuaweicloud.com/HuangHai/BlogImages/202409101349088.png)
+
+如上所示，$Dashboard$已经在$31475$端口上公开，现在可以在外部使用https://10.10.14.202:31475进行访问。
+
+注意：在多节点的集群中，必须找到运行$Dashboard$节点的IP来访问，而不是[$Master$节点](https://zhida.zhihu.com/search?q=Master节点&zhida_source=entity&is_preview=1)的IP；可以通过如下命令查询：
+
+```
+kubectl get pod -owide --namespace kubernetes-dashboard
+```
+
+![](https://dsideal.obs.cn-north-1.myhuaweicloud.com/HuangHai/BlogImages/202409101350711.png)
+
+可以看到dashboard 部署在k8s-node2，而本例中，master的ip为：10.10.14.203 故访问：https://10.10.14.202:31475
+
+
+
+1）界面打开大概率会提示“你的连接不是专用连接.....”，直接点击“继续访问”
+
+（注：如果没有“继续访问”的提示，则多换个浏览器，笔者是从Google、edge换到火狐才行的）
+

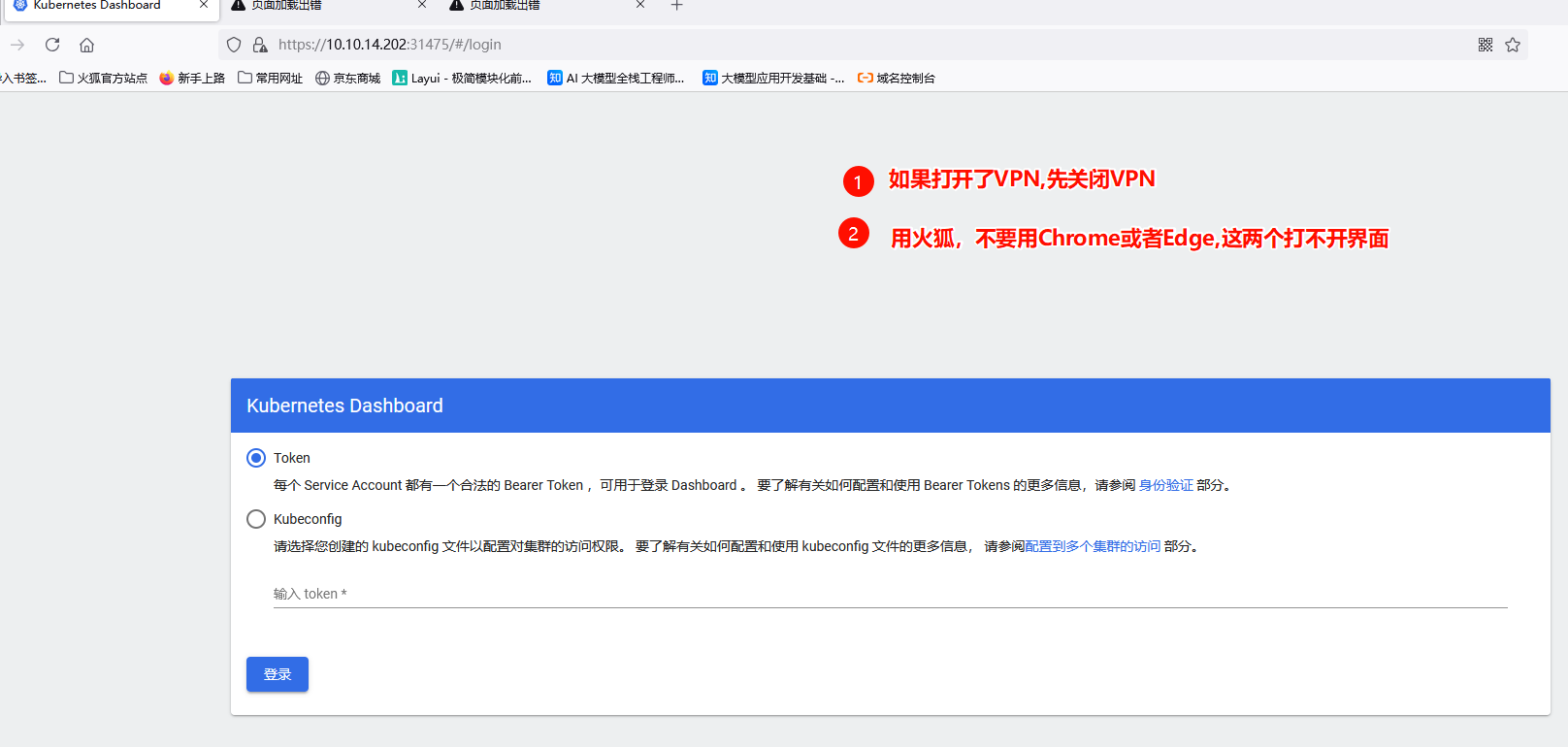

+（2）打开之后，会显示如下
+
+![](https://dsideal.obs.cn-north-1.myhuaweicloud.com/HuangHai/BlogImages/202409101359239.png)
+
+此时暂不点击界面，执行以下操作
+
+```
+#创建访问账号
+rz -be
+选择: D:\dsWork\dsExam\操作文档\dash.yaml
+
+#执行语句
+kubectl apply -f dash.yaml
+

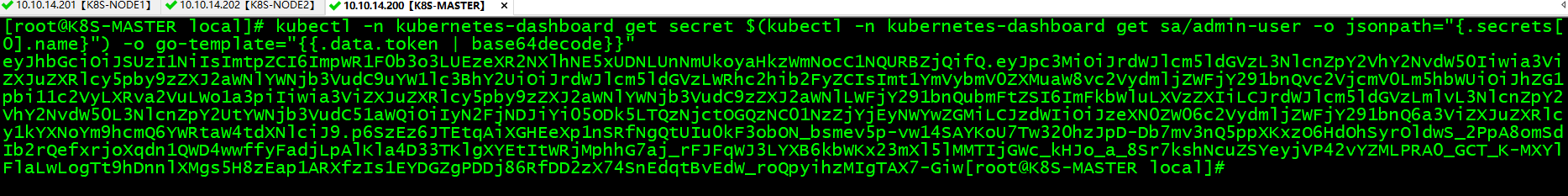

+#获取访问令牌
+kubectl -n kubernetes-dashboard get secret $(kubectl -n kubernetes-dashboard get sa/admin-user -o jsonpath="{.secrets[0].name}") -o go-template="{{.data.token | base64decode}}"
+
+```
+
+![](https://dsideal.obs.cn-north-1.myhuaweicloud.com/HuangHai/BlogImages/202409101402040.png)
+
+```
+eyJhbGciOiJSUzI1NiIsImtpZCI6ImpWR1F0b3o3LUEzeXR2NXlhNE5xUDNLUnNmUkoyaHkzWmNocC1NQURBZjQifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLWo1a3piIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiIyN2FjNDJiYi05ODk5LTQzNjctOGQzNC01NzZjYjEyNWYwZGMiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlciJ9.p6SzEz6JTEtqAiXGHEeXp1nSRfNgQtUIu0kF3obON_bsmev5p-vw14SAYKoU7Tw320hzJpD-Db7mv3nQ5ppXKxzO6HdOhSyrOldwS_2PpA8omSdIb2rQefxrjoXqdn1QWD4wwffyFadjLpAlKla4D33TKlgXYEtItWRjMphhG7aj_rFJFqWJ3LYXB6kbWKx23mXl5lMMTIjGWc_kHJo_a_8Sr7kshNcuZSYeyjVP42vYZMLPRA0_GCT_K-MXYlFlaLwLogTt9hDnnlXMgs5H8zEap1ARXfzIs1EYDGZgPDDj86RfDD2zX74SnEdqtBvEdW_roQpyihzMIgTAX7-Giw
+```
+

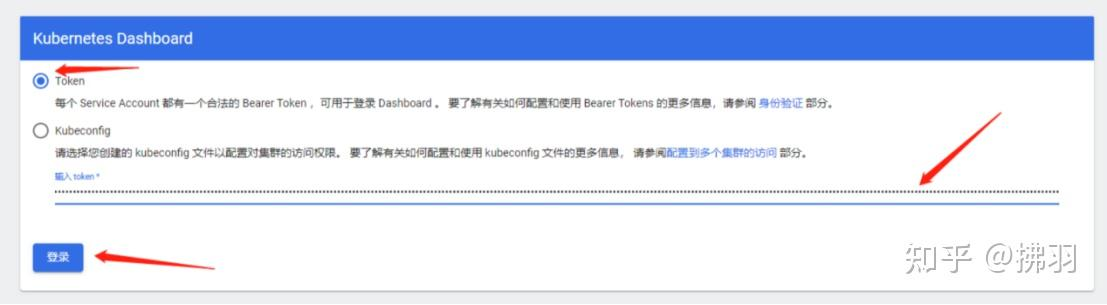

+#将运行结果下述白色内容复制到之前dashboard的登陆界面
+
+![](https://dsideal.obs.cn-north-1.myhuaweicloud.com/HuangHai/BlogImages/202409101403620.png)
+

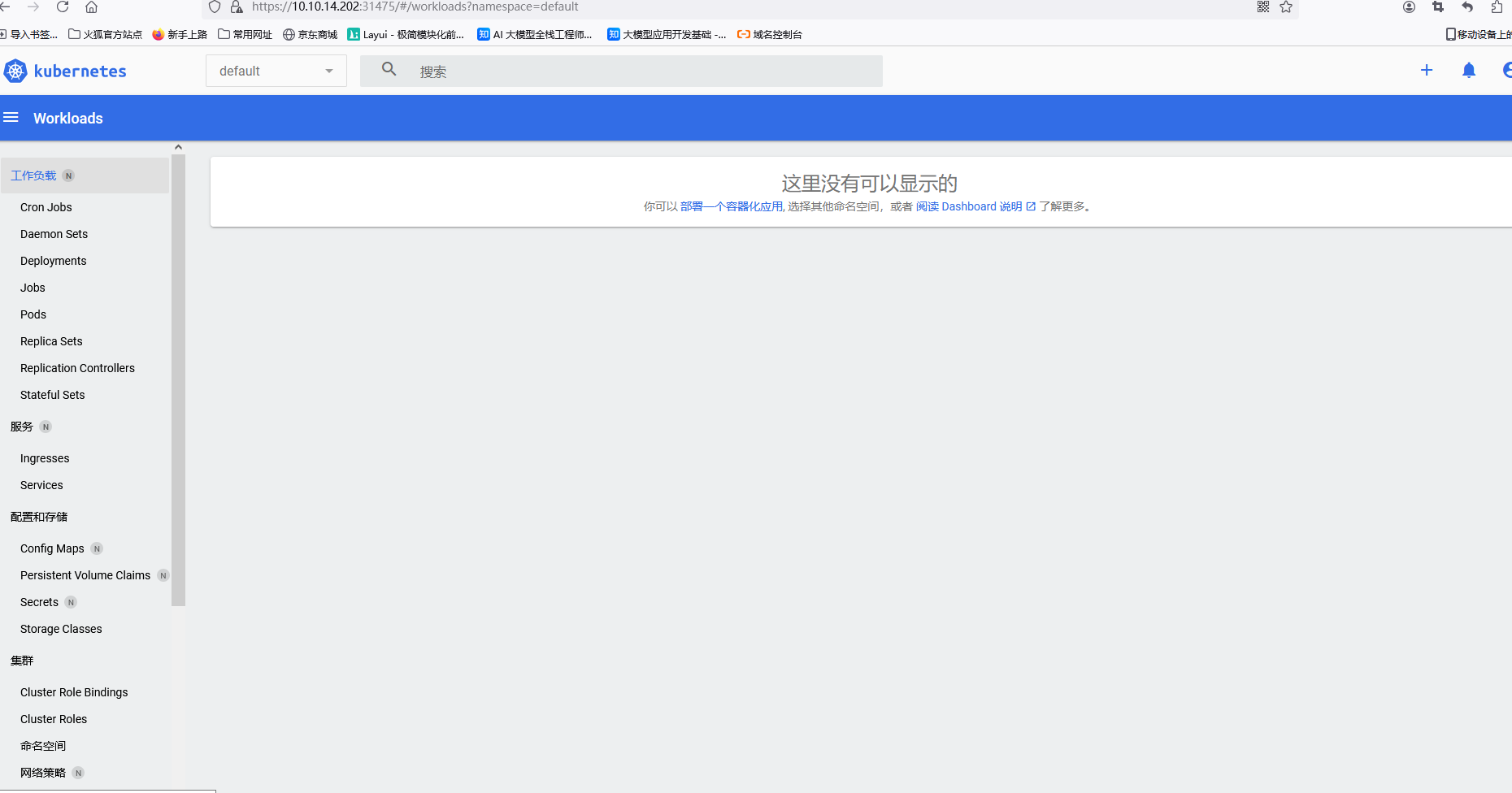

+登录成功如下图所示
+
+![](https://dsideal.obs.cn-north-1.myhuaweicloud.com/HuangHai/BlogImages/202409101403561.png)
+
+官方镜像站 【似乎需要翻墙~】
+
+https://hub.docker.com/
+
+
+
+**参考文档**
+
+[[BUG] runtime network not ready: NetworkReady=false reason:NetworkPluginNotRead](https://blog.csdn.net/keyuchen_01/article/details/128070052)
+
+https://zhuanlan.zhihu.com/p/672518868
+
+https://zhuanlan.zhihu.com/p/693571878
+
