第一步：获取操作的Token
|
|
|
|
|
|
admin
|
|
|
DataEase@123456
|
|
|
|
|
|
地址：
|
|
|
http://10.10.14.203/de2api/login/localLogin
|
|
|
|
|
|
content-type: application/json
|
|
|
数据：
|
|
|
{
|
|
|
"name": "XkdqNzblA7zA9bmvcDs1lR4Dg2/bVaPnYN0+7y/VfyR2XoJ/Miu9gqKa5kVQe/reZyyAgUKqgD1AJwEKsvXC9fyeccIcAWqUwg6gKNoY7Wu4iZM6cJ6ri3CLhqtOGlHRLrn105btKxSrt/nM71pEy8a8lYbCBZRGqHnBDU1/JAs=",
|
|
|
"pwd": "a/w4bFGfyY2BqZ6xEM5cj6ChOxC7ves8sJM0wUAKnBtqdIYHwxMLBDWKgmua0EMH7EvRy5S6yirz3VZI+fpGQAZF8jX+7evIZxdQq2jJU7r5EJPY5L+AA/a3zbuOvoOEtOdh5Y9nNdI1jSEzqH4m9IP/ADRFhF1xEfmemQKmU08="
|
|
|
}
|
|
|
|
|
|
返回：
|
|
|
{
|
|
|
"code": 0,
|
|
|
"msg": null,
|
|
|
"data": {
|
|
|
"token": "eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJ1aWQiOjEsIm9pZCI6MSwiZXhwIjoxNzM0MDQ4MDEyfQ.9-scx4pBDlsvjL28aI7VaWPcnO4lNkc7-KO8SuzWPzo",
|
|
|
"exp": 1734048012144
|
|
|
}
|
|
|
}
|
|
|
|
|
|
|
|
|
第二步：拷贝母屏生成可编辑临时副本
|
|
|
地址：
|
|
|
http://10.10.14.203/de2api/dataVisualization/copy
|
|
|
|
|
|
Header:
|
|
|
x-de-token:
|
|
|
eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJ1aWQiOjEsIm9pZCI6MSwiZXhwIjoxNzM0MDQ2ODc3fQ.42oSabyyDAx-TPJbJoPgwsMFtsjRmZMM90Taqr1l7nQ
|
|
|
|
|
|
参数以json格式传递，不要用form-data或者x-www-form-urlencoded等其它格式：
|
|
|
{
|
|
|
"nodeType": "leaf",
|
|
|
"name": "云南省教育决策支持系统【市州】-copy",
|
|
|
"type": "dataV",
|
|
|
"id": "1036286881547030528",
|
|
|
"pid": "1036643788262608896"
|
|
|
}
|
|
|
响应：
|
|
|
{"code":0,"msg":null,"data":"1064853824788893696"}
|
|
|
|
|
|

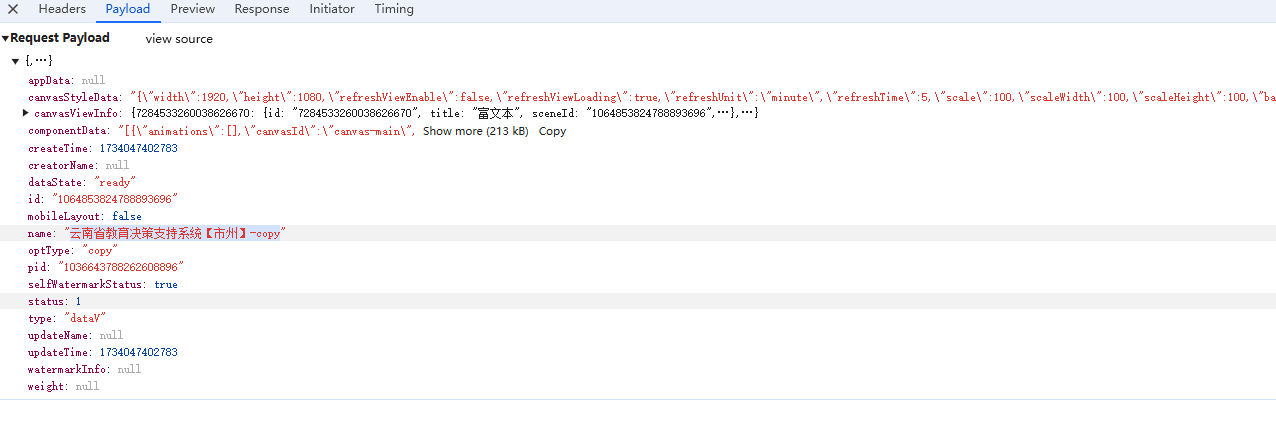

第三步：将临时副本保存下来
|
|
|
地址：
|
|
|
http://10.10.14.203/de2api/dataVisualization/saveCanvas
|
|
|
|
|
|
数据：
|
|
|
|
|
|
{
|
|
|
"canvasStyleData": TODO ,
|
|
|
"componentData": TODO ,
|
|
|
"appData": null,
|
|
|
"id": "1064853824788893696",
|
|
|
"name": "云南省教育决策支持系统【市州】-copy",
|
|
|
"pid": "1036643788262608896",
|
|
|
"status": 1,
|
|
|
"selfWatermarkStatus": true,
|
|
|
"type": "dataV",
|
|
|
"creatorName": null,
|
|
|
"updateName": null,
|
|
|
"createTime": 1734047402783,
|
|
|
"updateTime": 1734047402783,
|
|
|
"watermarkInfo": null,
|
|
|
"weight": null,
|
|
|
"mobileLayout": false,
|
|
|
"dataState": "ready",
|
|
|
"optType": "copy"
|
|
|
}
|
|
|
|
|
|
其中 canvasStyleData 和 componentData 可以通过读取数据库母屏数据的办法获取到
|
|
|
|
|
|
|
